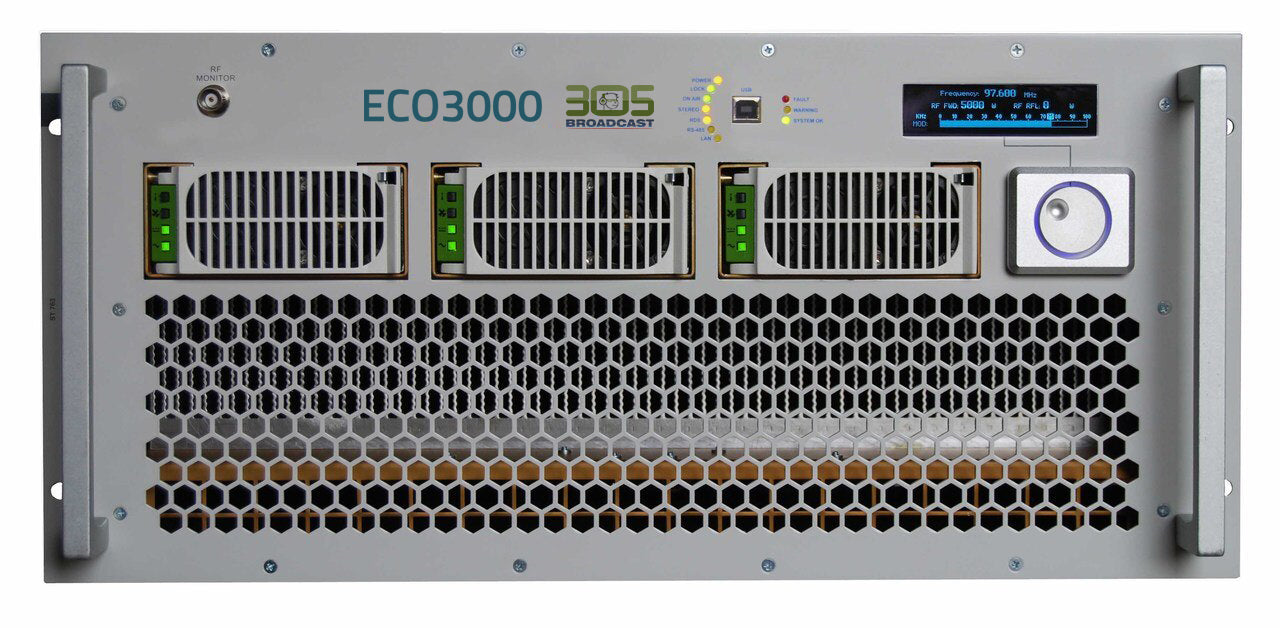

3 KW FM TRANSMITTER - ECO 3000
305 Broadcast ECO 3000 FM transmitter, 3000 W (3 kW). A professional solid-state FM broadcast transmitter from the 305 Broadcast ECO series, built for commercial, community and network stations. Backed by 305 Broadcast engineering support and logistics across the United States, Latin America and the Caribbean.
ECO series features
- Solid-state LDMOS RF amplification, with overall efficiency up to 80%.
- Output power adjustable from 0 W to maximum, from the front panel or remotely.
- Mono and MPX (composite) operation, with SCA/RDS/aux input; distortionless soft limiter that keeps peak deviation within ±75 kHz.
- Fast hardware protection plus software protection that reduces power without going off the air. Protected against load mismatch and antenna short/open circuit, over-temperature, cooling failure, amplifier failure, and AC and DC over/under-voltage.
- VSWR 1.5:1 maximum, with automatic power fold-back at higher VSWR.
- Aluminium air-ducted design: cooling air flows through aluminium ducts and heat sinks, away from the electronic components. PCBs and wiring are tropicalized against dust, humidity, salt and pollution.
- Easy maintenance: RF modules, control boards, blowers and power supplies are easy to replace, and the ECO line shares the same spare parts.
- N+1 profile connector with 7 selectable memories.
Available options
- High-performance stereo encoder and digital AES/EBU input (XLR and optical TOS-LINK, 24-bit, 32–96 kHz).
- Dynamic RDS encoder with TMC function, and audio over IP (AoIP).
- Web (TCP/IP) and SNMP v2c remote control and monitoring, with e-mail alarms, event log and weekly power scheduler.
- Parallel remote-control interface, external 10 MHz reference and SFN (single-frequency network) synchronization module.
- OIRT (66–74 MHz) and JPN (76–90 MHz) versions.
Tell us which options you need and we will confirm the exact configuration of your ECO 3000 in the quotation.
ECO series technical characteristics
| Frequency range | 87.5–108 MHz, programmable in 10 kHz steps |
| Output impedance | 50 Ω |
| Modulation | Direct FM, F3E (stereo with subcarrier, mono) |
| Pre-emphasis | Flat / 50 / 75 µs, selectable from the front panel |
| RF harmonics and spurious | Better than 84 dBc |
| THD+N | 0.03% @ 400 Hz |
| FM S/N (mono, MPX) | −85 dB below ±75 kHz deviation, 50 µs de-emphasis, weighted |
| Stereo separation (stereo option) | ≥65 dB from 80 Hz to 15 kHz (typ. 70 dB) |
| Power factor | > 0.99 |
| Cooling | Forced air |
| Operating temperature | −10 °C to +50 °C |
| Maximum operating altitude | 4,000 m |
| Relative humidity | 0–95%, non-condensing |
Model-specific data for the ECO 3000 (RF output connector, AC input, dimensions and weight) is in its datasheet. Ask us for it, together with the complete package: transmitter, antenna, cable and STL.
Pricing, availability and lead time on quotation. Call 305-431-1520 or contact 305 Broadcast. Guide: how to choose an FM transmitter by power and coverage.
