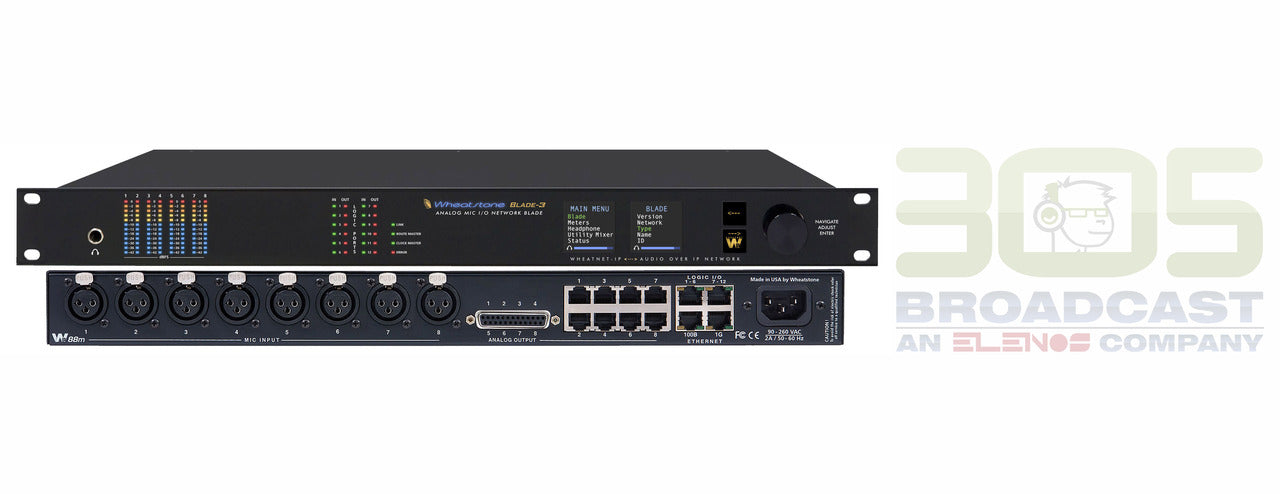

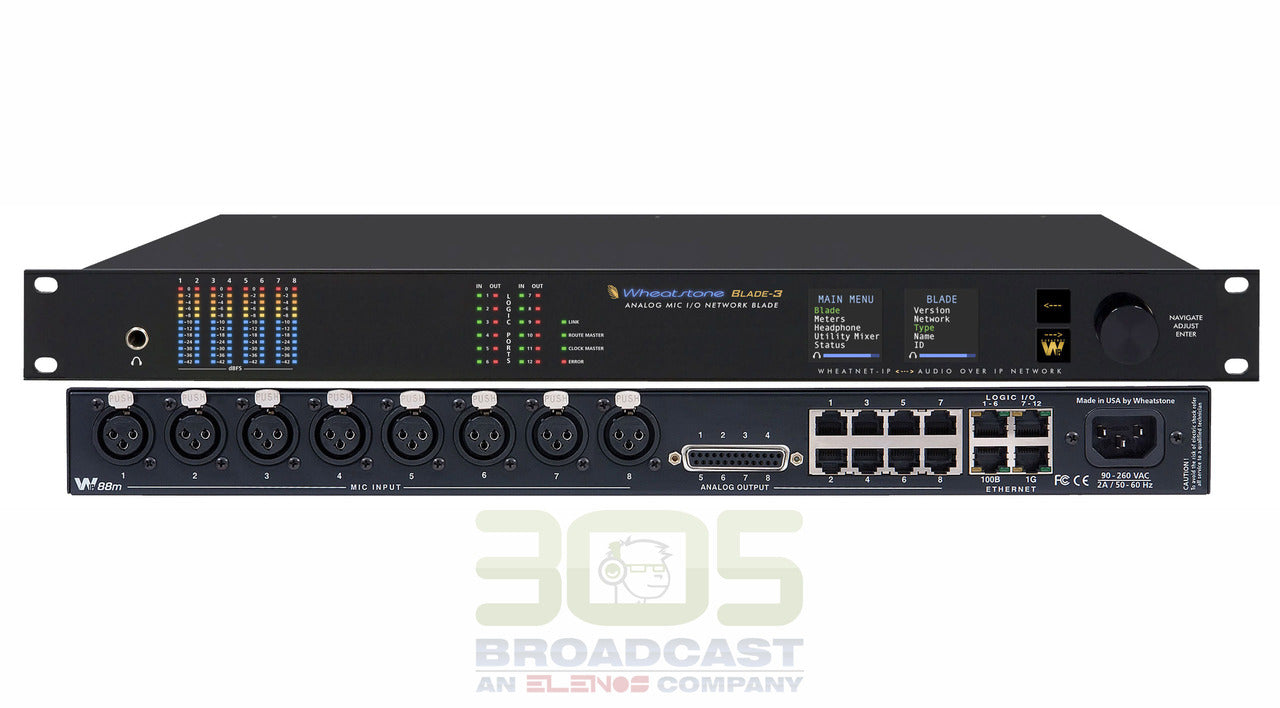

Wheatstone ip88-3m Blade Microphone IP Audio Console

The IP88M is an analog input/output BLADE with microphone-level inputs. It has eight built-in microphone preamplifiers complete with pad, phase switch, and phantom power. It provides eight analog line-level outputs.

I/O BLADEs are far more than mere access units connecting studios, elements and Wheatstone control surfaces in the WheatNet-IP Intelligent Network. Yes, I/O BLADEs convert audio and logic inputs to data streams on the network and convert outgoing data streams to hardware outputs. But these 1RU I/O units ? which come in analog, digital and analog/digital I/O units - also have intelligence inside. Each I/O BLADE comes with a CPU and operating system so you can do amazing things with your audio network, starting with routable mixing, logic-follow-audio and a whole lot more.

Standalone Input / Output router with 8 mono microphone inputs and 4 stereo analog outputs (8 mono). Internal audio clip player. Internal DSP audio processing channel. Interface via DB25 or RJ-45 connections. 12 assignable GPIO logic ports. Network multiple I/O Blades through gigabit Ethernet switch.

Features

• CPU with OS and standalone operation

• 24-bit A/D and D/A convertors

• 1RU, no fans

• AES67 compatible

• One Gigabit Ethernet port

• Two stereo 8x2 utility mixers

• Stereo multiband processor

• Embedded audio playback

• Silence sensing can be applied to any outputs

• 16 analog input channels

• 16 analog output channels

• RJ-45 connectors for audio (8 in, 8 out)

• Four D-Sub connectors for audio (2 in, 2 out)

• 12 universal logic ports (GPIO) on 2 RJ-45 connectors

• 128 software logic ports

• Front panel headphone jack

• Two colorful OLED displays on front
